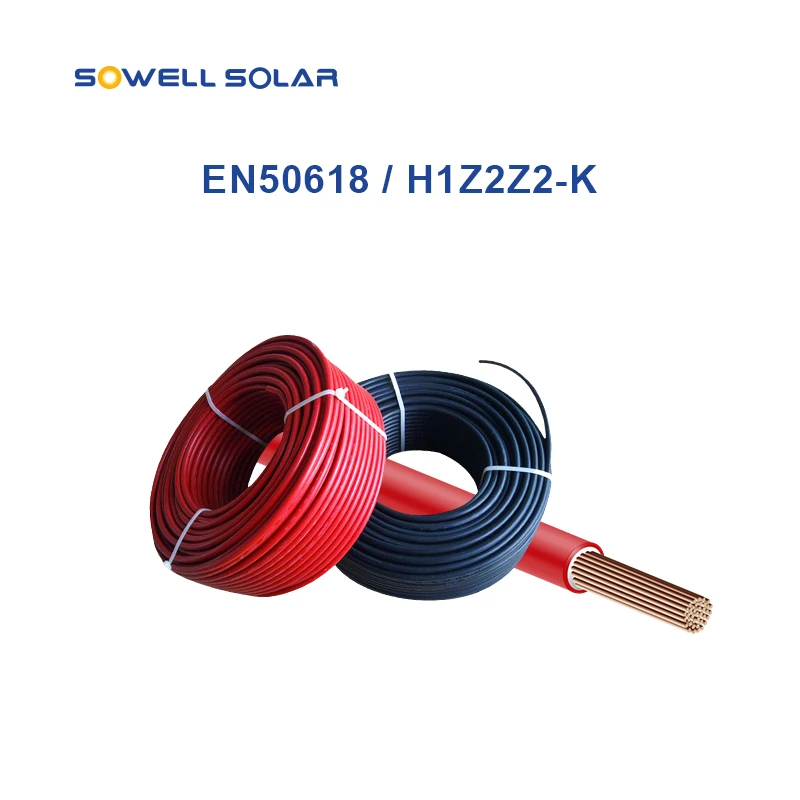

Hoc halogen-liberum, polyolefinum duplicatum stratum photovoltaicum (PV) affixum, funis speciei ad systemata generationis generationis potentiae solaris specialiter destinatur.
Photovoltaica H1Z2Z2-K Cable - EN 50618 plene compatitur cum componentibus maxime photovoltaicis usque ad 1500 V DC aestimatis, inter PV connexiones pixides et PV connexiones, quae optimam solutionem faciunt pro residentialibus, commercialibus, et usui-scalarum officinarum solarium.
Machinatus ad diuturnum tempus velit usum, funem liberat optimam electricae operationis, mechanicam vim, et resistentiam environmental, in tuto ac certa potestate tradendi per ministerium vitae systematis PV.
PNTECH Solaris PV Cable
EN 50618 H1Z2Z2-K
1 ** mm²
DC 1500 V
Non disconnect sub onere
4 mm² Solaris PV Cable

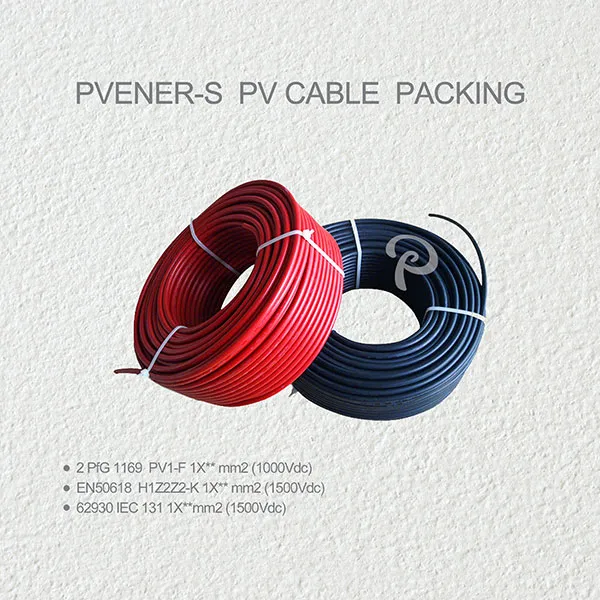

100 metra per rotulum, 112 rotulae per grabatum

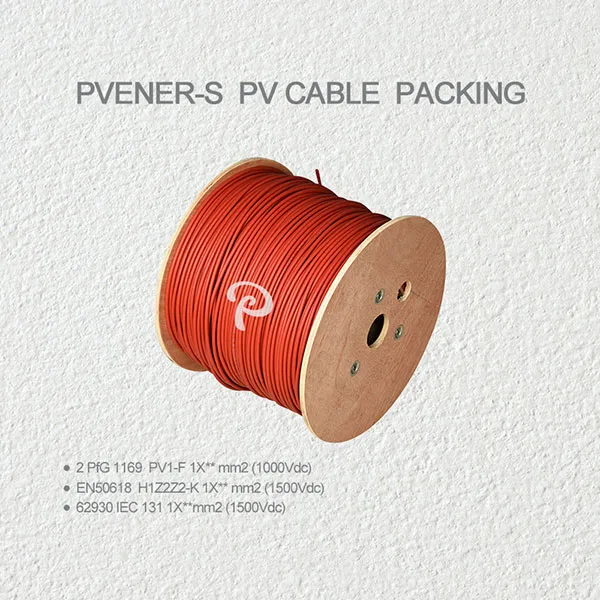

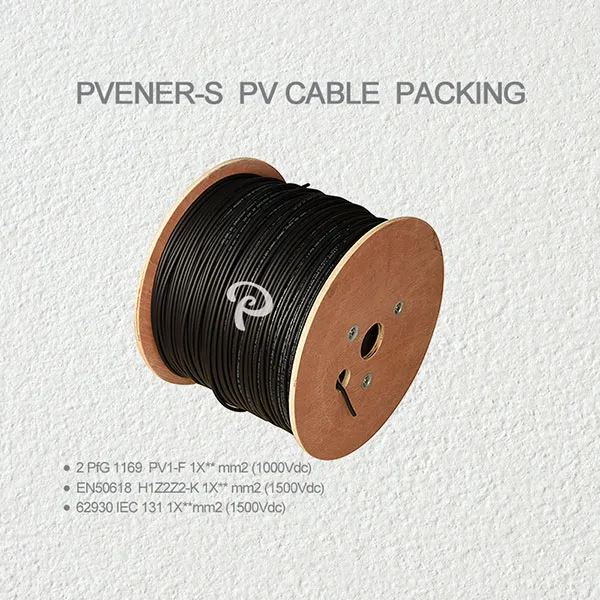

500 metra per rotulum, 18 volvitur per grabatum
Continens Loading
Una XX-pedalis continens potest onerare XX cursare
Customization
Aliae magnitudinum funerum, longitudinum volvi, et optionum fasciculorum in petitione praesto sunt
1.Conductor
Conductor aeris tinctus fabricatus ad normam IEC 60228, Classis V, praestans flexibilitatem, conductivity et corrosionem resistentiae.
2.Insulation
125°C fumus humilis, halogen-liberum polyolefin flammeum retardans, alta stabilitas scelerisque, salus electrica, praesidium environmental.
3.Outer Vagina
125°C fumus humilis, halogen-liberum polyolefin flammeum retardans, fortiter resistens calori, abrasioni et condicionibus environmental velit.
4.Special processu
Electron trabem cross-linking (E-trabem cross-coniunctio) technologia, augens vires mechanicas, scelerisque senescit resistentia, ac tempor tempus firmitudo.
| Item No. | Productum Nomen |
Exemplar | Ratum Voltage |
Conductor crucis sectione mm 2 |
Strand design Numerus x Ø mm |
Conductor resistentia Ω / km 20°C |
Exterior-Ømm | Vagina Color |
|---|---|---|---|---|---|---|---|---|
| PV-H1-15B | PV Cable | H1Z2Z2-K | 1500VDC | 1X1.5 | 30/0.25 | 13.70 | 4.7±0.1mm | Niger |
| PV-H1-15R | PV Cable | H1Z2Z2-K | 1500VDC | 1X1.5 | 30/0.25 | 13.70 | 4.7±0.1mm | Red |
| PV-H1-25B | PV Cable | H1Z2Z2-K | 1500VDC | 1X2.5 | 49/0.25 | 8.21 | 5.3±0.1mm | Niger |
| PV-H1-25R | PV Cable | H1Z2Z2-K | 1500VDC | 1X2.5 | 49/0.25 | 8.21 | 5.3±0.1mm | Red |
| PV-H1-40B | PV Cable | H1Z2Z2-K | 1500VDC | 1X4,0 | 56/0.285 | 5.09 | 5.6±0.1mm | Niger |
| PV-H1-40R | PV Cable | H1Z2Z2-K | 1500VDC | 1X4.0 | 56/0.285 | 5.09 | 5.6±0.1mm | Red |
| PV-H1-60B | PV Cable | H1Z2Z2-K | 1500VDC | 1X6,0 | 84/0.285 | 3.39 | 6.1±0.1mm | Niger |
| PV-H1-60R | PV Cable | H1Z2Z2-K | 1500VDC | 1X6.0 | 84/0.285 | 3.39 | 6.1±0.1mm | Red |
| PV-H1-100B | PV Cable | H1Z2Z2-K | 1500VDC | 1X10 | 77/0.4 | 1.95 | 7.3±0.1mm | Niger |
| PV-H1-100R | PV Cable | H1Z2Z2-K | 1500VDC | 1X10 | 77/0.4 | 1.95 | 7.3±0.1mm | Red |
| PV-H1-160B | PV Cable | H1Z2Z2-K | 1500VDC | 1X16 | 126/0.4 | 1.24 | 9.3±0.1mm | Niger |
| PV-H1-160R | PV Cable | H1Z2Z2-K | 1500VDC | 1X16 | 126/0.4 | 1.24 | 9.3±0.1mm | Red |
| PV-H1-250B | PV Cable | H1Z2Z2-K | 1500VDC | 1X25 | 196/0.4 | 0.795 | 11.2±0.1mm | Niger |
| PV-H1-250R | PV Cable | H1Z2Z2-K | 1500VDC | 1X25 | 196/0.4 | 0.795 | 11.2±0.1mm | Red |
| PV-H1-350B | PV Cable | H1Z2Z3-K | 1500VDC | 1X35 | 273/0.4 | 0.565 | 12.6±0.1mm | Niger |
| PV-H1-350R | PV Cable | H1Z2Z4-K | 1500VDC | 1X35 | 273/0.5 | 0.565 | 12.6±0.1mm | Red |
| Cable design | |
|---|---|
| Conductor | Fila aenea tincta secundum IEC 60228, Classis 5 |
| Insulation | 125 Low-Fumum Halogen Free Flamma Retardant Polyolefins |
| Exteriore iaccam | 125℃ Halogen-Fumum Belgicum Flamma Retardant Polyolefins |
| Specialis technicae artis | Electron trabem crucis-connexum |
| Characteres electrica | |
| Rated voltage U0/U* | AC 1000V, DC 1500V . |
| Temperatus range | -40℃ usque ad +90℃ |
| Maximilianus. temperatus ad conductor | 120℃ |
| Min. inflexio radii | 5 x cable diameter |
| Signa industria | EN 50618:2014 |
| Distrahentes vires et elongationem | secundum EN 60811-1-1 |
| Frigus inflexio | secundum EN 60811-1-4 |
| Scelerisque patientia possessiones | secundum EN60216-2 |
| Halogen liberum | iuxta 50525-1 Annex B |
| Ozone resistentia | secundum EN 50396 |
| UV resistentiam | iuxta HD 605/A1 |
| Flamma proprietates | secundum IEC 60332-1-2 |
| Dimensiones et specificationes mutari possunt sine praevia notitia. | |
Experientiam habemus X annorum in productione funalium PV et connexorum PV. Producere possumus 200,000 metra funerum PV ac 50,000 strophorum PV connexorum per diem producere. Nostrum grabatum de mensuris global venditionibus aptius est. Officina nostra non solum lineas productionis funis velocitatis habet, sed etiam instrumenta electronica irradiatio transversalis connexionis habet, quod instrumentum clavis est ad qualitatem funis regendam. Nostra technologia provectus praestat funibus producendis GENERALIS.
